Name: Maretron Mid Bulk Cable - 100 Meter - Gray [DG1-100C]
SKU: 6604584452293
Availability: InStock

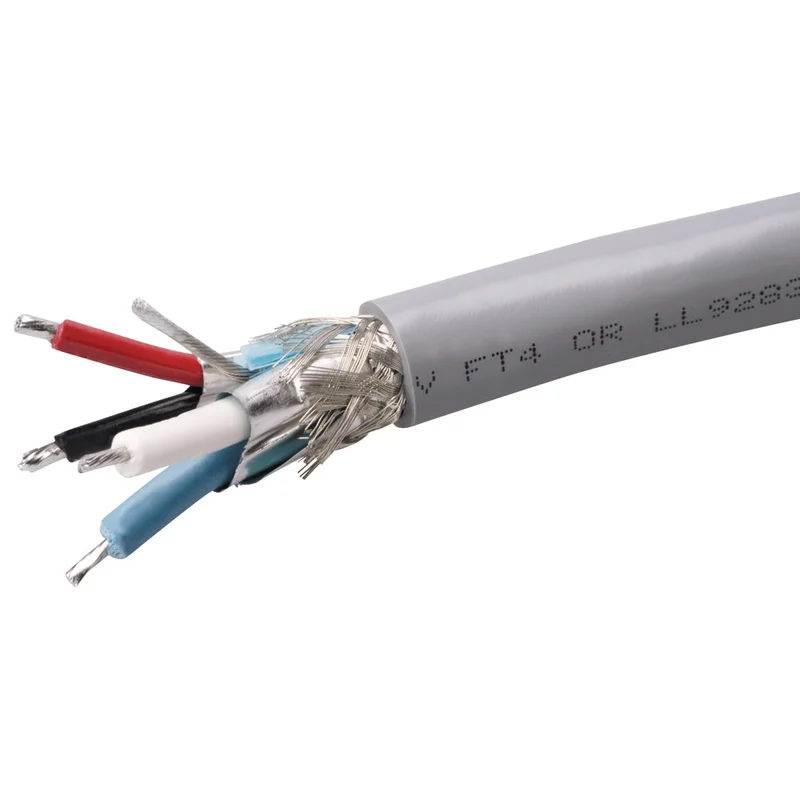

Maretron Mid Bulk Cable – 100 Meter – Gray [DG1-100C]

Description

Specifications

Overall

Outer Jacket Mat/Color: PVC/Gray –
DG1 PVC/Blue –
DB1

Insulation Material: PE (data wires), PVC (power wires)

Construction:2×16 (1.29mm) AWG, 2×20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire

Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)

Power Pair

Wire:2×16 (1.29mm) AWG

Resistance/Conductor: 4.1 Ohms/1000 ft max

Max Amperage:14 Amps

Color Code:Red/Black

Data Pair

Wire:2×20 (0.81mm) (AWG)

Characteristic Impedance: 120 Ohms +/- 10%

Capacitance: 10.75 pF/ft

Color Code:White/Blue

Approvals

UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V

CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4

NMEA: NMEA 2000 Approved

IEC: IEC-61162-3

Specifications:
