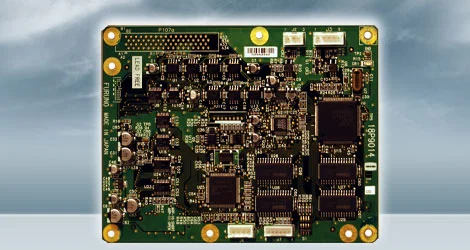

Furuno ARP11 Arpa Board

Furuno ARP11

The Furuno ARP11 is a 10-target auto plotter designed for use with NavNet and NavNet vx2, as well as the FR8002 and 1835/19×5 Radar series.

The Furuno ARP automatically tracks automatically or manually acquired radar targets and calculates their courses and speeds, indicating them by vectors. Since the data generated by the auto plotter are based on what radar targets are selected, the radar must always be optimally tuned for use with the ARP to ensure required targets will not be lost or unwanted targets such as sea returns and noise will not be acquired and tracked.

The plotting accuracy and response of this ARP meets IMO standards. Tracking accuracy is affected by the following:

• Tracking accuracy is affected by course change. One to two minutes is required to restore vectors to full accuracy after an abrupt course change. (The actual amount depends on gyrocompass specifications.)
• The amount of tracking delay is inversely proportional to the relative speed of the target. Delay is on the order of 15-30 seconds for high relative speed; 30-60 seconds for low relative speed.

Furuno will install the ARP11 at our facility prior to shipping with no labor charge.Please notify your dealer when ordering if you would like the ARP11 installed. You may experience a slight delay in shipping as we install the ARP11.
