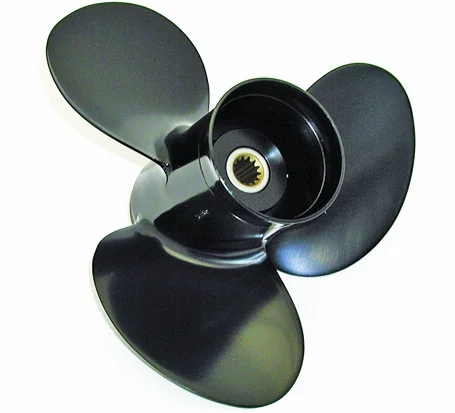

BRP 763301 14 X 11 Aluminium Three Blade Right Hand Rotation Prop (rubex) (763301)

This aluminum three-blade propeller has a large diameter measuring 14″ and 11 pitch. Made from high strength and flexible aluminum and it is easy to repair. It can remove any pores or pitting in the metal during the squeeze casting process, creating a blade that is thinner, sharper, and stronger. It typically moves in a clockwise rotation. It offers better acceleration and top speed for two-stroke and four-stroke motors. The engine application for two-stroke with 40-60 horsepower, 2 cylinders large gearcase, 55-75 Horsepower Three Cylinder 75-140 Horsepower Four Cylinder.40/50/60 hp (Evinrude® E-TECâ„¢)…2004-thru, 45 hp (Commercial)…1986-thru; 50 hp… 1971-74;50 hp (Commercial)…1980-thru; 55 hp (Commercial)…1980-thru;55 hp…1968-69;60 hp…1970-71; 60 hp…1986-96;65 hp…1972-73;65 hp (Commercial)…1984-2001;70 hp…1974-2001; 75 hp (large gearcase)…1975-84; 75 hp…2004-thru;85 hp…1969-80;85 hp…1991-95; 88 hp…1981-thru; 90 hp…2004-thru; 90 hp…1981-thru;100 hp…1979-80; 100 hp…1988-thru; 100 hp…2004-thru; 110 hp…1986-89; 115 hp…1973-thru; 120 hp1986-94; 125 hp…1971-72; 135 hp…1973-76; 140 hp…1977-84;140 hp…1986-94.

Key Features

• Great replacement propeller

• General Purpose and economy

• Available in Aluminum

• Better acceleration for two-stroke and four-stroke

• Sharper and stronger blade

Specifications

• BRAND: BRP

• SKU: 763301

• UPC: 824375017278

• WEIGHT: 8.00 LBS

• MATERIAL: ALUMINUM

• PITCH: 11

General purpose & economy

Engine Application

2-Stroke 40-60 Horsepower Two Cylinder Large Gearcase, 55-75 Horsepower Three Cylinder 75-140 Horsepower Four Cylinder

40/50/60 hp (Evinrude® E-TEC™)…2004-thru, 45 hp (Commercial)…1986-thru;
50 hp… 1971-74;
50 hp (Commercial)…1980-thru;
55 hp (Commercial)…1980-thru;
55 hp…1968-69;
60 hp…1970-71;
60 hp…1986-96;
65 hp…1972-73;
65 hp (Commercial)…1984-2001;
70 hp…1974-2001;
75 hp (large gearcase)…1975-84;
75 hp…2004-thru;
85 hp…1969-80;
85 hp…1991-95;
88 hp…1981-thru;
90 hp…2004-thru;
90 hp…1981-thru;
100 hp…1979-80;
100 hp…1988-thru;
100 hp…2004-thru;
110 hp…1986-89;
115 hp…1973-thru;
120 hp1986-94;
125 hp…1971-72;
135 hp…1973-76;
140 hp…1977-84;
140 hp…1986-94

Attaching Hardware:H25

60-70 Horsepower 4-Stroke

70 hp (Evinrude® & Johnson® 4 Cyl.)…1998;
70 hp (Evinrude 4 Cyl.)…1999-2001;
60-70 hp (Johnson 4 Cyl.)…2002-thru

Attaching Hardware:H23

Attaching Hardware

H25

Cotter pin:
Sierra: 18-3742
Cotter pin (100/box):
Other: 354622
Nut:
Sierra: 18-3705
Quicksilver: 859929
Spacer, nut, & pin kit:
Sierra: 18-3716
Quicksilver: 802010Q1
Splined spacer (aft):
Sierra: 18-4228
Quicksilver: 859892
Thrust washer (forward):
Sierra: 18-4222
Quicksilver: 859915

H23

Cotter pin:
Sierra: 18-3735
Flat washer:
Other: 5030441
Nut:
Sierra: 18-3726
Splined spacer washer (aft):
Sierra: 18-3798
Other: 5030925
Splined spacer, washer, nut & cotter pin kit:
Sierra: 18-3774
Thrust washer (forward) 60 hp ’02-’03, 70 hp ’01-’03:
Other: 5032551
Thrust washer (forward) 70 hp 1998, 2000 TNT (20″ shaft):
Other: 5030924

H76

Cotter pin:
Sierra: 18-3742
Cotter pin (100/box):
Other: 354622
Nut:
Sierra: 18-3705
Quicksilver: 859929
Spacer, nut, & pin kit:
Sierra: 18-3716
Quicksilver: 802010Q1
Splined spacer (aft):
Sierra: 18-4228
Quicksilver: 859892
Thrust washer (forward):
Sierra: 18-4222
Quicksilver: 859915
Michigan Wheel: 991210

This product replaces:

BRP763301, 824375017278, 763301, BRP177160, BRP177148
