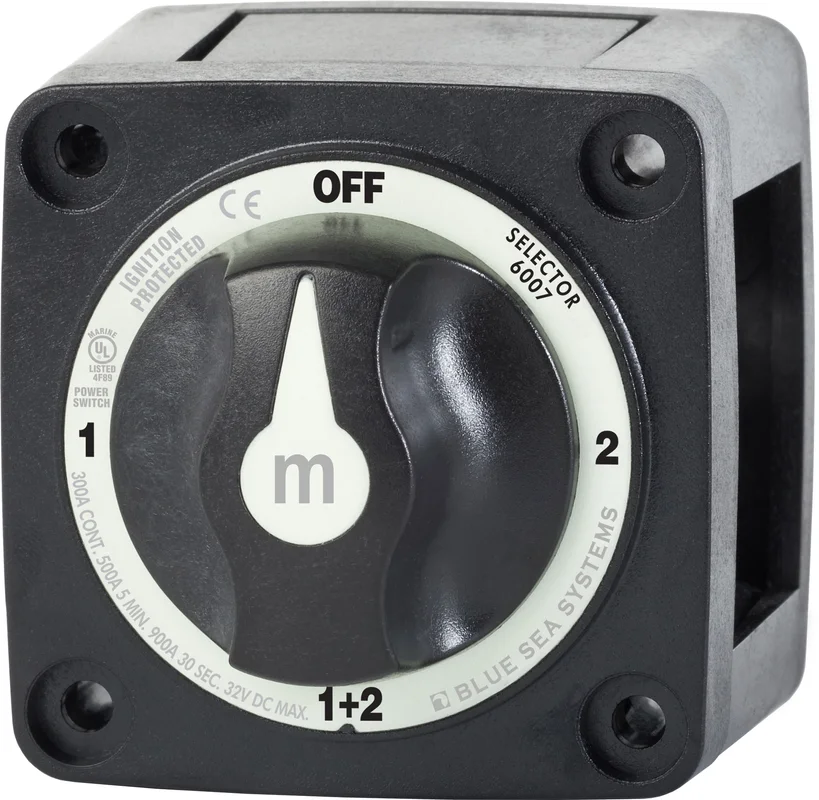

Blue Sea M-SERIES Battery Switch On/Offor On/Both with Knob Black

Blue Sea Systems m-Series Mini Selector Battery Switch – Black

Model: 6007200-BSS

• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Studs accept 3/8″ (M10) ring terminals
• 7/8″ (22mm) stud length accepts multiple cable terminals
• Blue Sea Systems one-piece terminal stud design never loosens over time
• Isolating cover with snap-on sections protects rear contacts
• Case design allows surface, rear, or front panel mounting options
• Waterproof — rated IP66 from water projected in powerful jets
• One-piece stainless flange nuts ensure safe and secure connections
• Breakout tabs allow wire access in any direction
• Ignition protected—safe for installation aboard gasoline powered boats
• Make before break contact design allows switching between battery banks without power interruption

Switches isolated battery banks to all loads or combines battery banks to all loads
