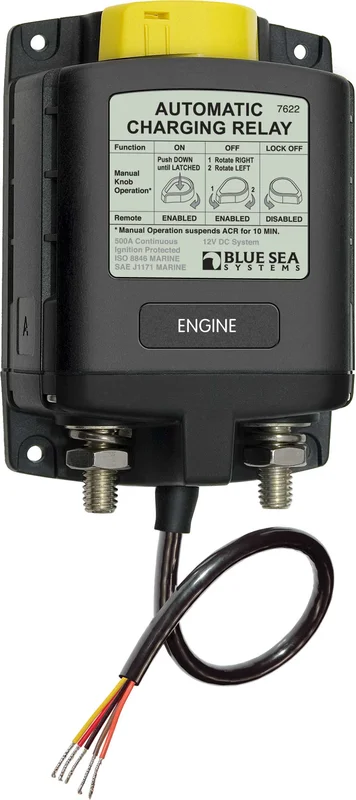

Name: Blue Sea 7622 Ml Series Heavy Duty Charging Relay w/ Man Ctr
SKU: 25972
Availability: InStock

Description

Manual control switch provides an added level of safety allowing control with or without power, and offering “Locked Off” capability for servicing
Includes ML-Series Remote Control Contura Switch PN 2146
500 Ampere continuous rating
Magnetic Latch (ML)-ACR draws very low current (<10 mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state
Start Isolation (SI)-Can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
Engine Isolation (EI)-Can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
Senses charging on two battery banks
Supports high-output alternators up to 500 Amps
LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, in Start or Engine isolation
3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance
7/8″ (22mm) stud length accepts multiple cable terminals
Label recesses for circuit protection
Silver alloy contacts provide high reliability for switching live loads

Manual Control

Coil Voltage

Cable End

Remote Control Switch Included

Yes
