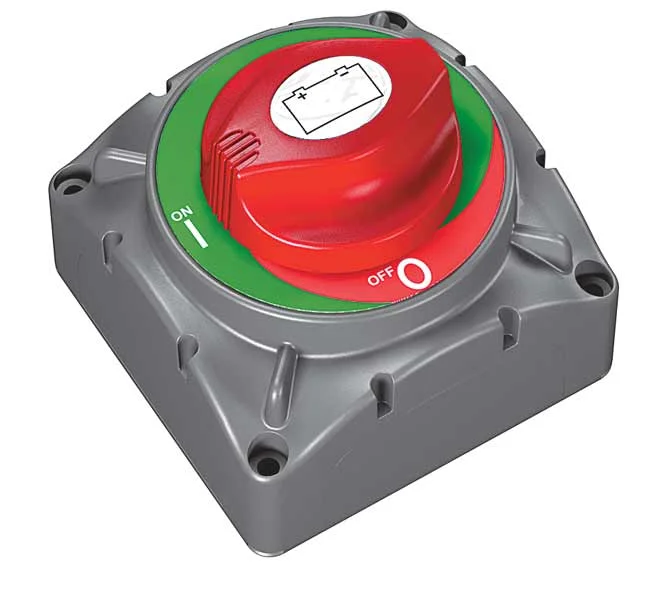

BEP Marine 720 Heavy Duty Battery Switch

Heavy Duty Battery Switch

The 720 Heavy Duty Battery Switch follows the successful release of the 701 switch in 1999. It fits into the same contour lock system as used on the battery distribution system. Rated at 600 amps continuous and 2500 amps cranking.

The 720 Heavy Duty Battery Switch follows the successful
release of the 701 switch in 1999. It fits into the same contour lock
system as used on the battery distribution system. Rated at 600 amps
continuous and 2500 amps cranking. It is well suited to larger vessels.
As with the 701, the 720 can be recessed or surface mounted. The 720 uses
the same style of self cleaning sliding contact as used in the 701 and utilizes
the same label sheet as 701 (part number 713 or 715)

720 Specifications:

• Continuous Rating: 600 Amps DC
• Intermittent Rating: 800 Amps DC
• Cranking Rating: 2500 Amps DC
• Voltage Rating: 48 Volts DC
• Operation: On / Off
• Mounting: Recessed or Surface
• Termination Stud Size: 2 x 12 mm (1/2 inch)
• Dimensions: 102 x 102 x 90h mm (4 x 4 x 3.5h inches)
• Tin plated copper studs and nuts
• Ignition protected
• Termination Stud Size: 2 x 12 mm (1/2 inch)
